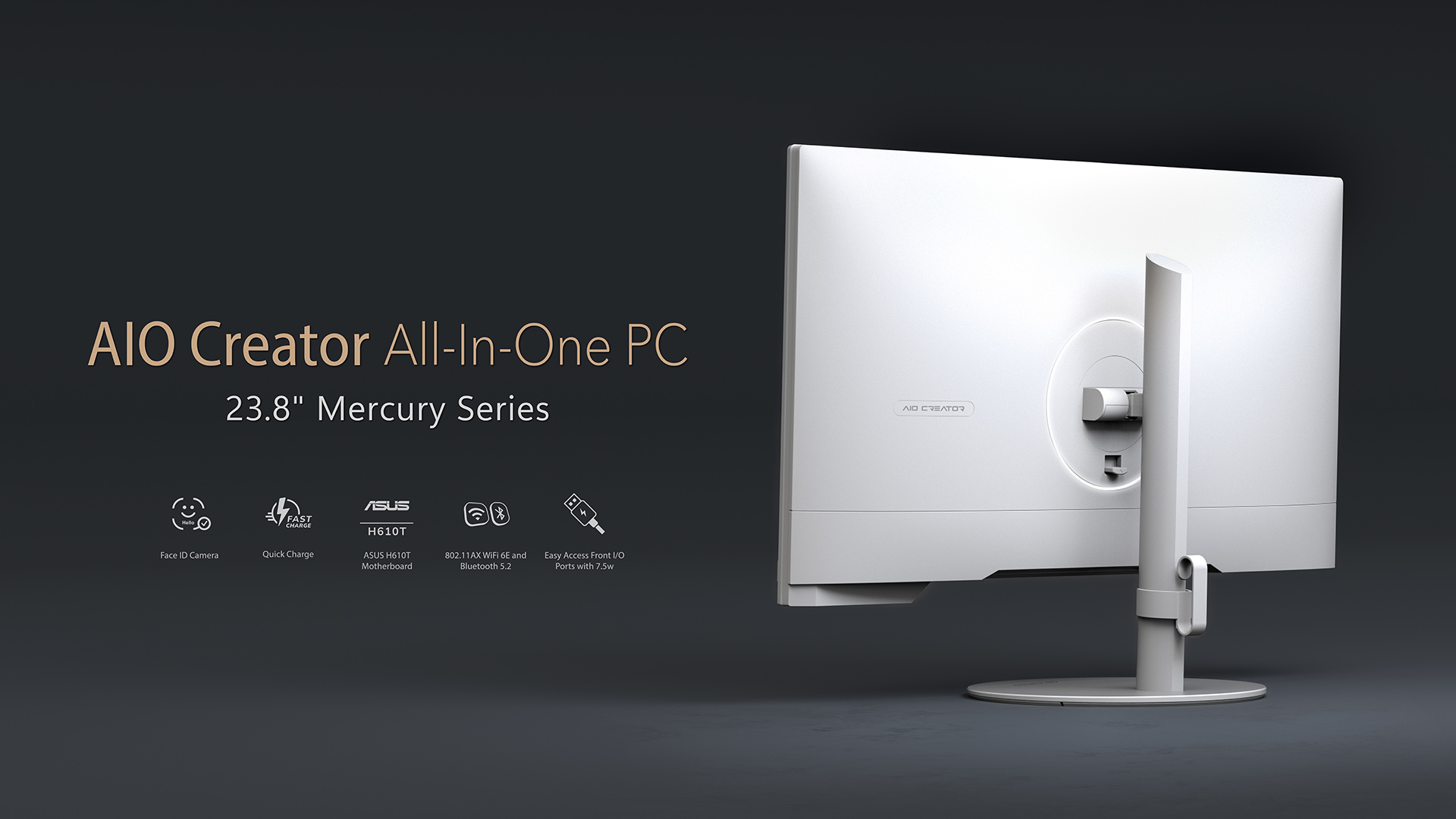

Mercury 24 / 27 All-in-one DIY Chassis for Consumer

  • Screen Size
    23.8" and 27"
  • Designed for
    DIY and Custom-Build Computer Users
  • Image
    Comfortable and Low-Profile Luxury
  • Consumer Features

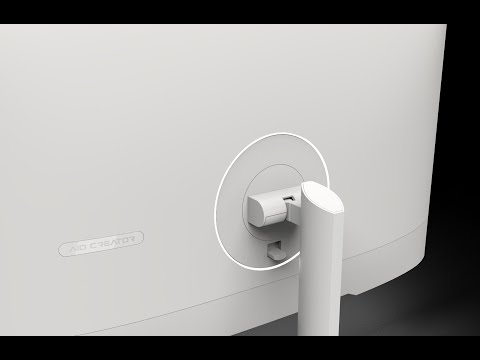

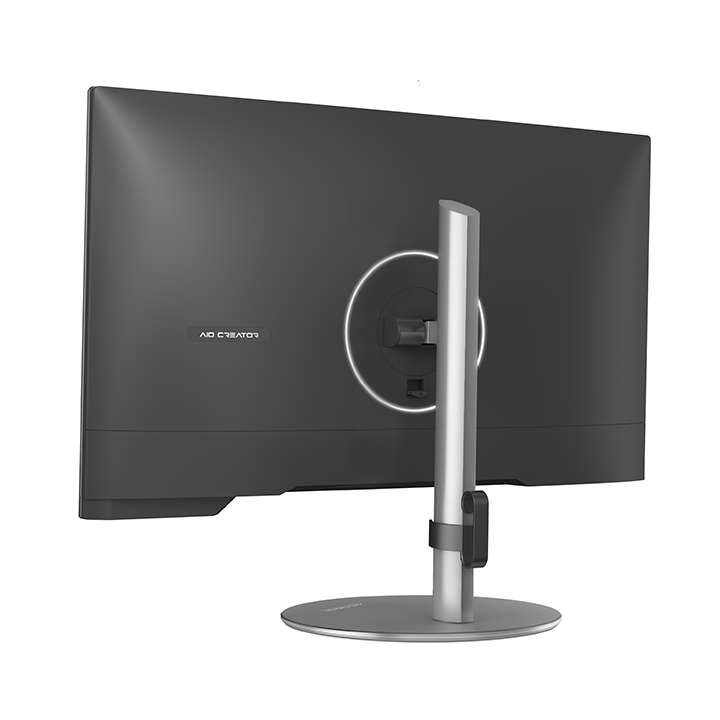

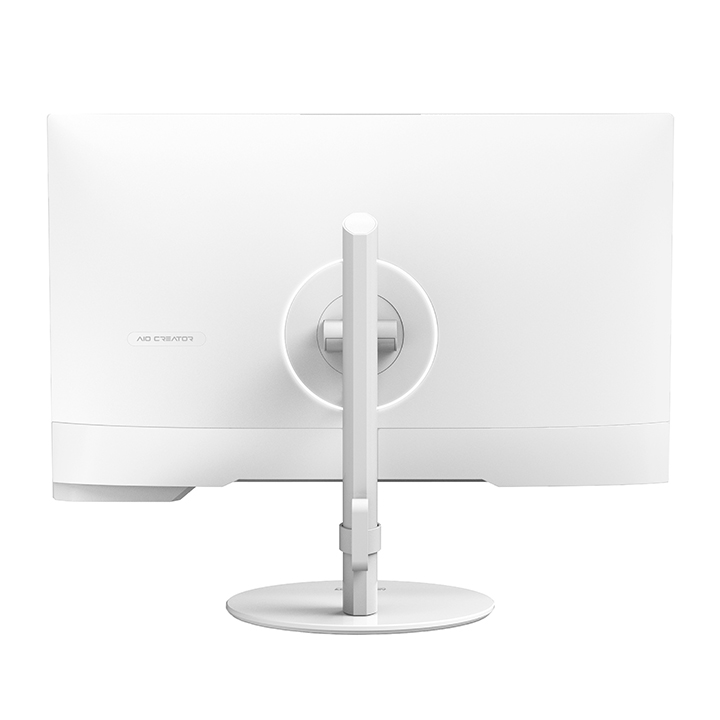

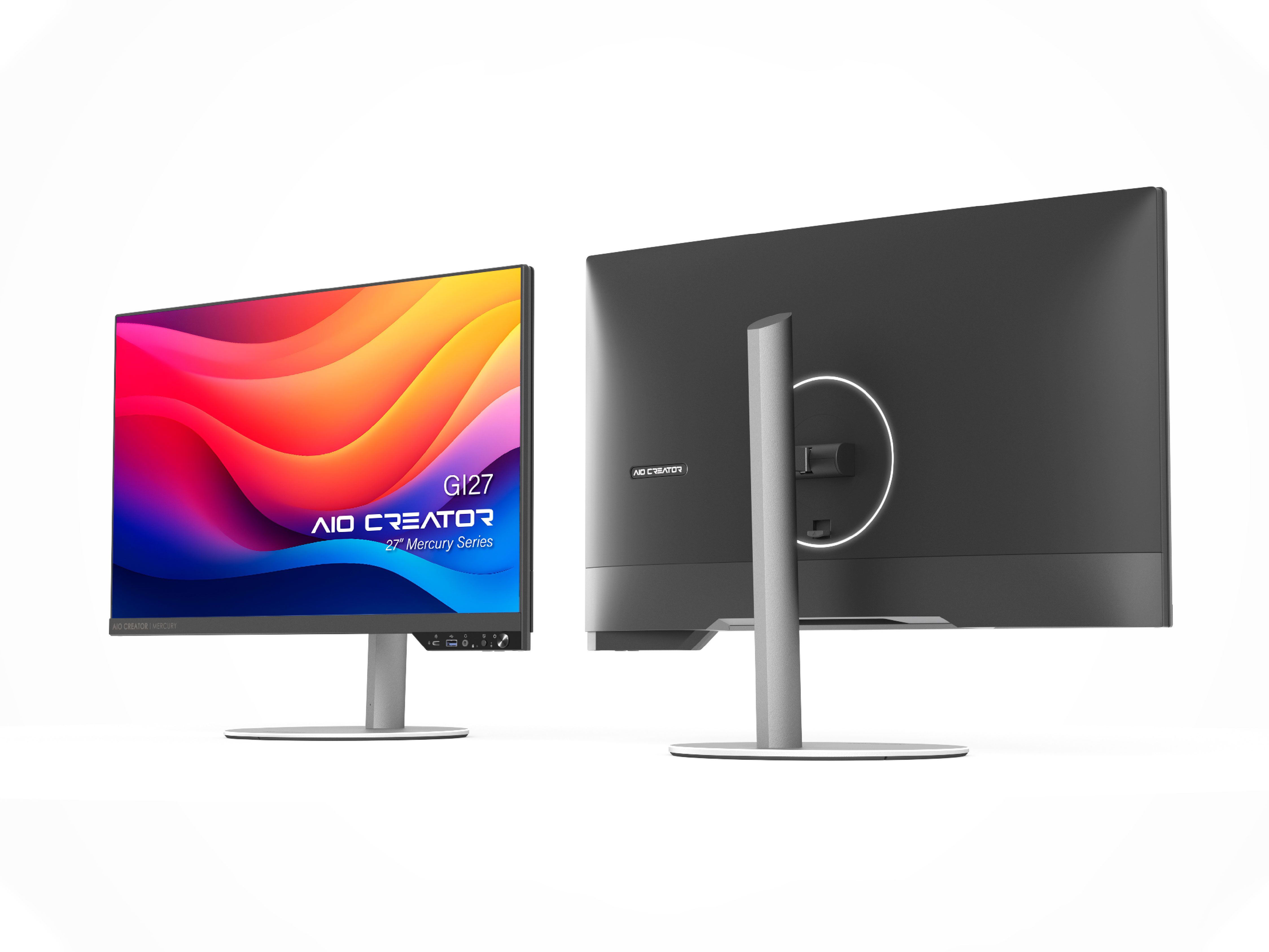

    Lighting Circle on Back Chassis
  • Performance
    Support Desktop 65W i7 CPU, 64GB Memory, 4TB M.2 NVMe SSD, Wi-Fi6E and Bluetooth 5.2, 2 x 2.5" HDD
  • Exclusive DIY Features
    Tool-less Chassis. Easy assemble CPU, Memory, SSD. Ergonomics Stand. Quick-Connect HDD Installation. Internal Cable Management
  • Color
    Black / White

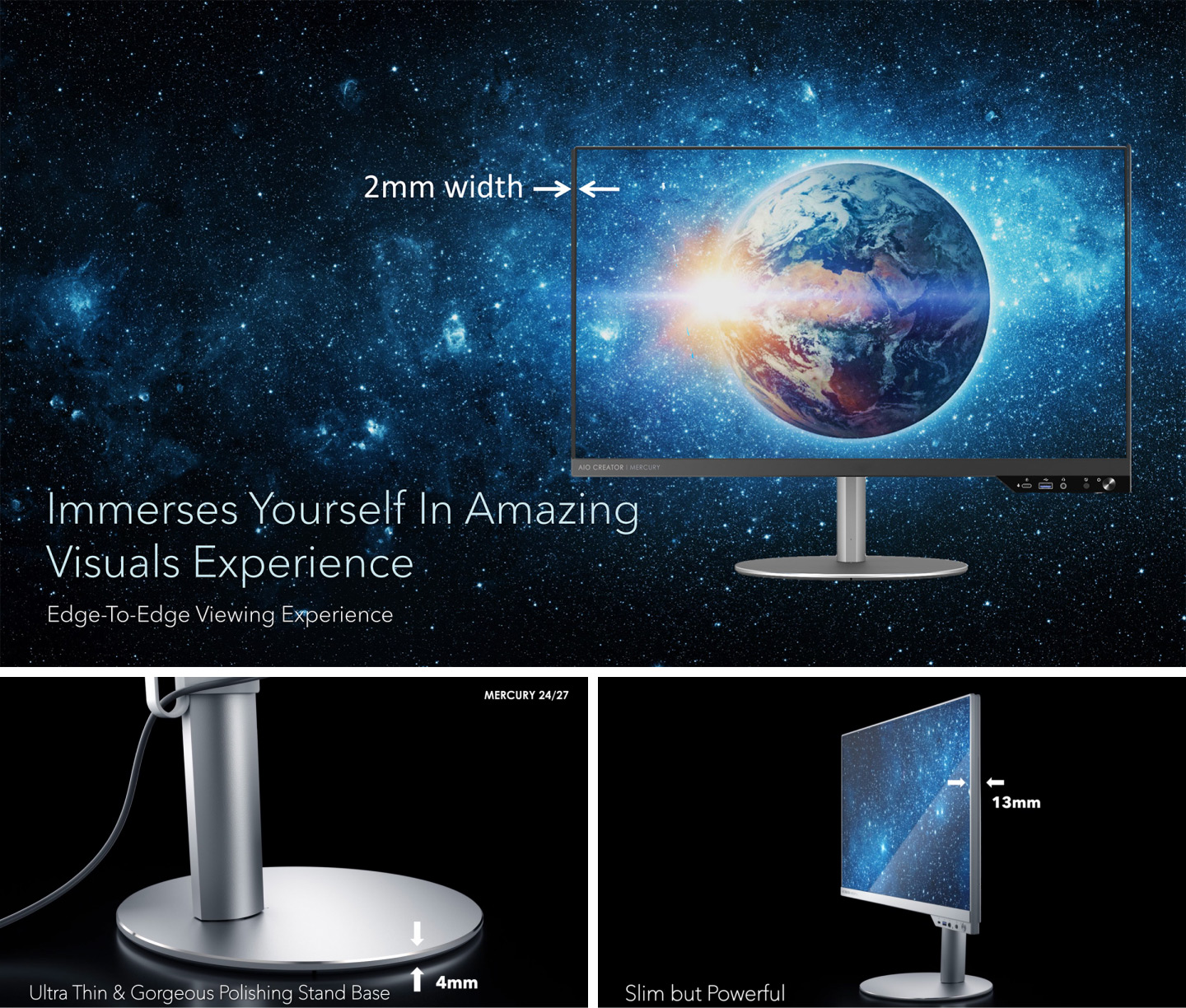

SLIM DESIGN

Desktop CPU Performancewith Skinny Body

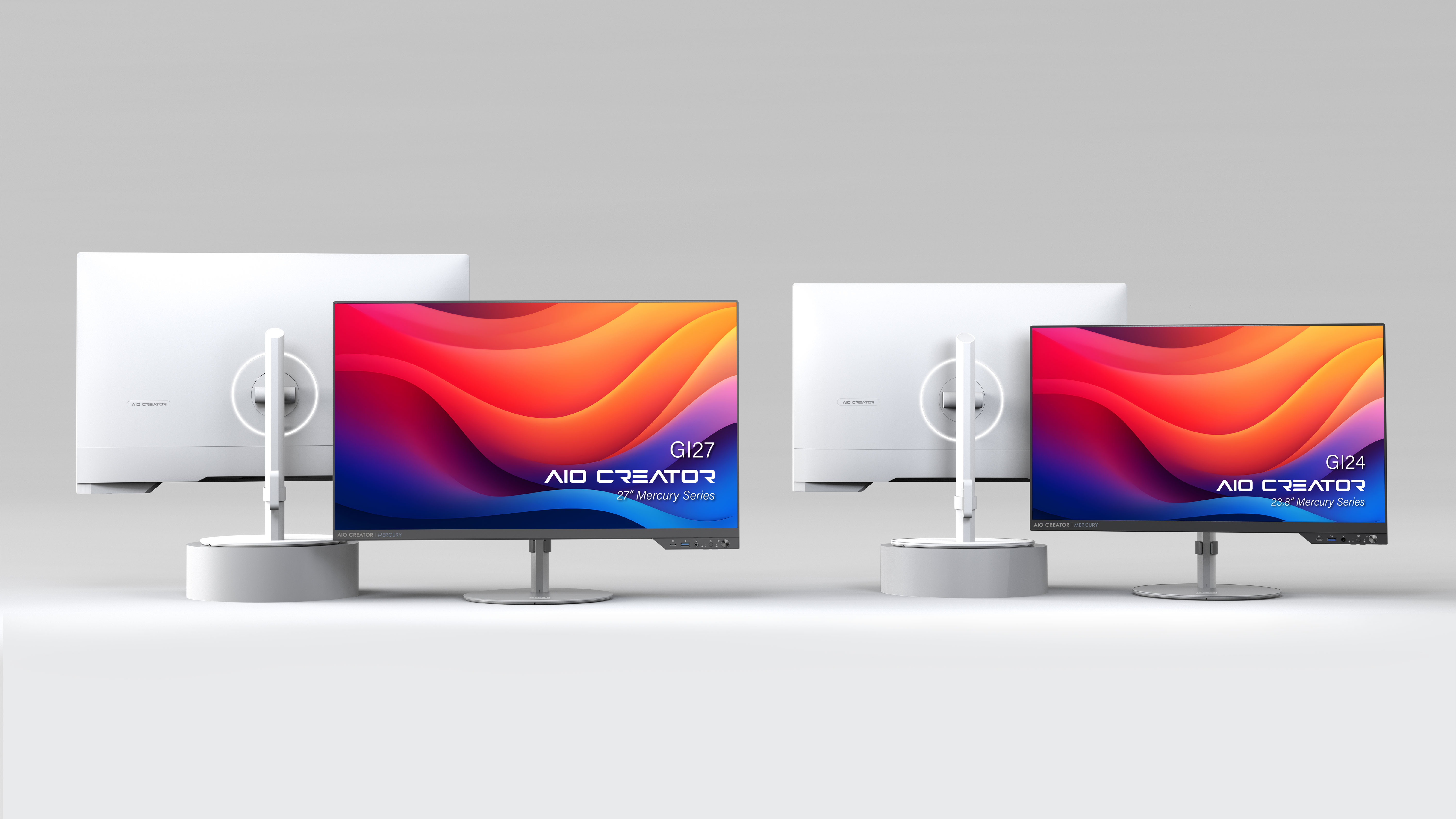

SIZE & COLOR
23.8” and 27” Screen Size
Classic Black & Elegant White

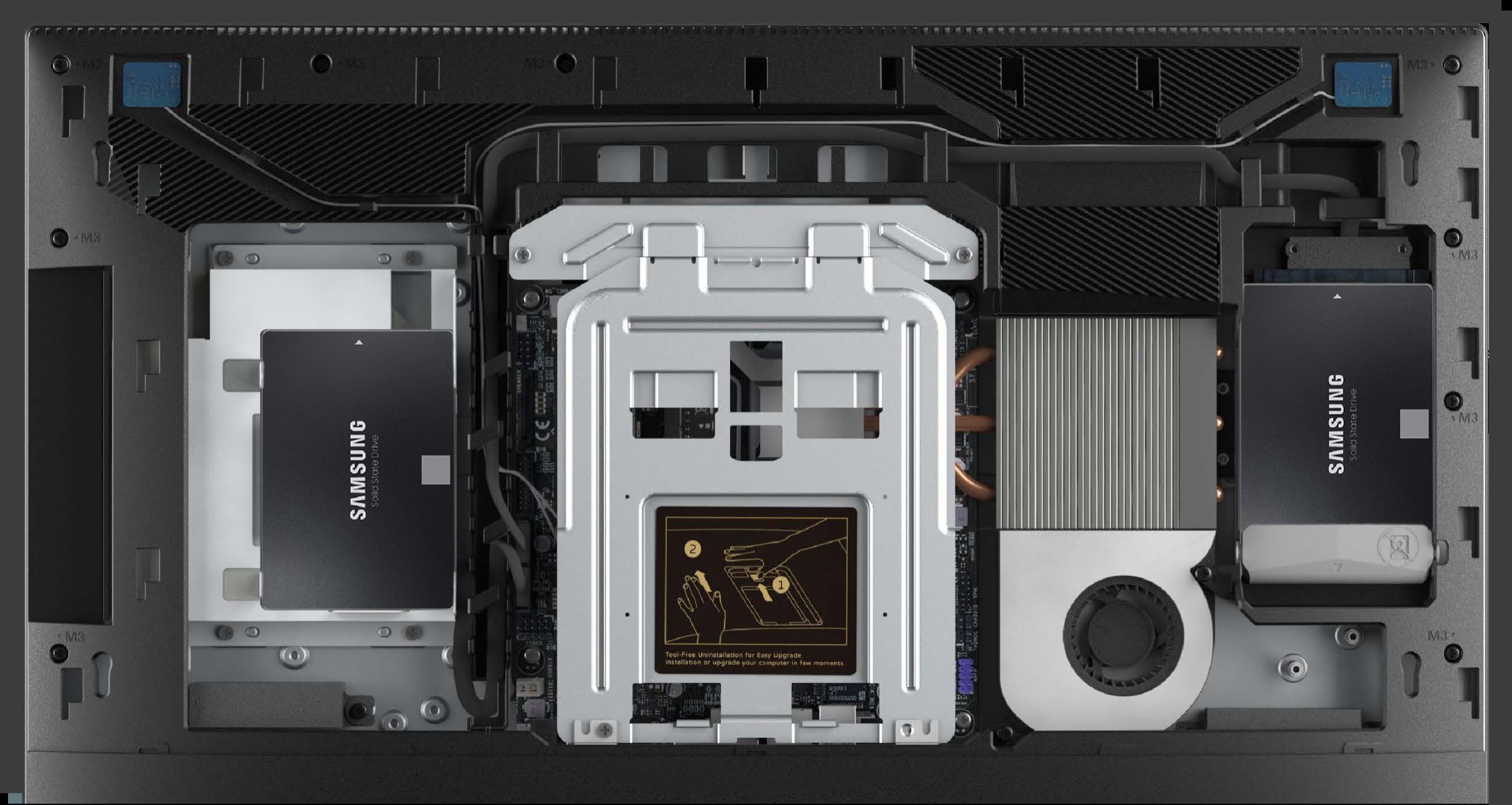

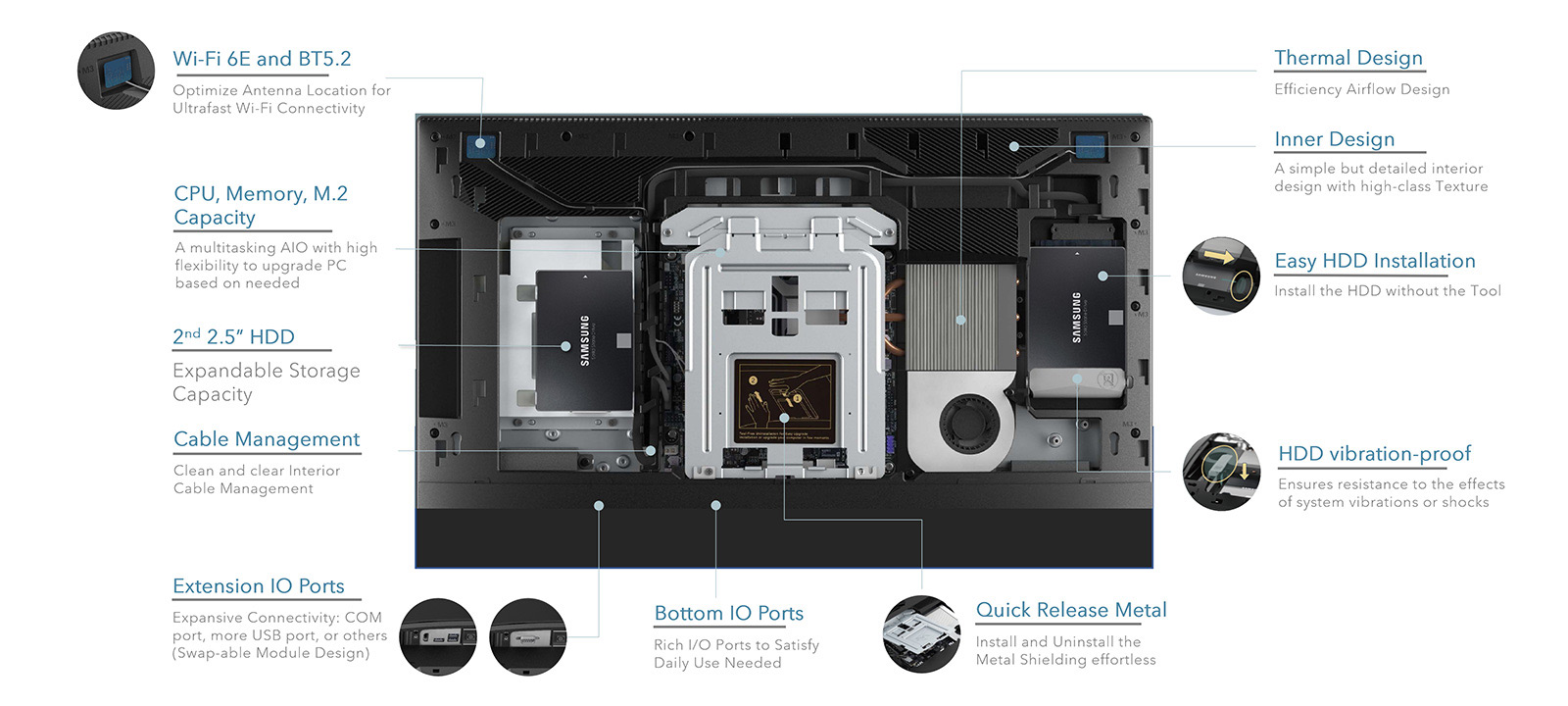

INSIDE CHASSIS
Wow the World with Simple Interior Design
Designed to be stunning on the inside and outside

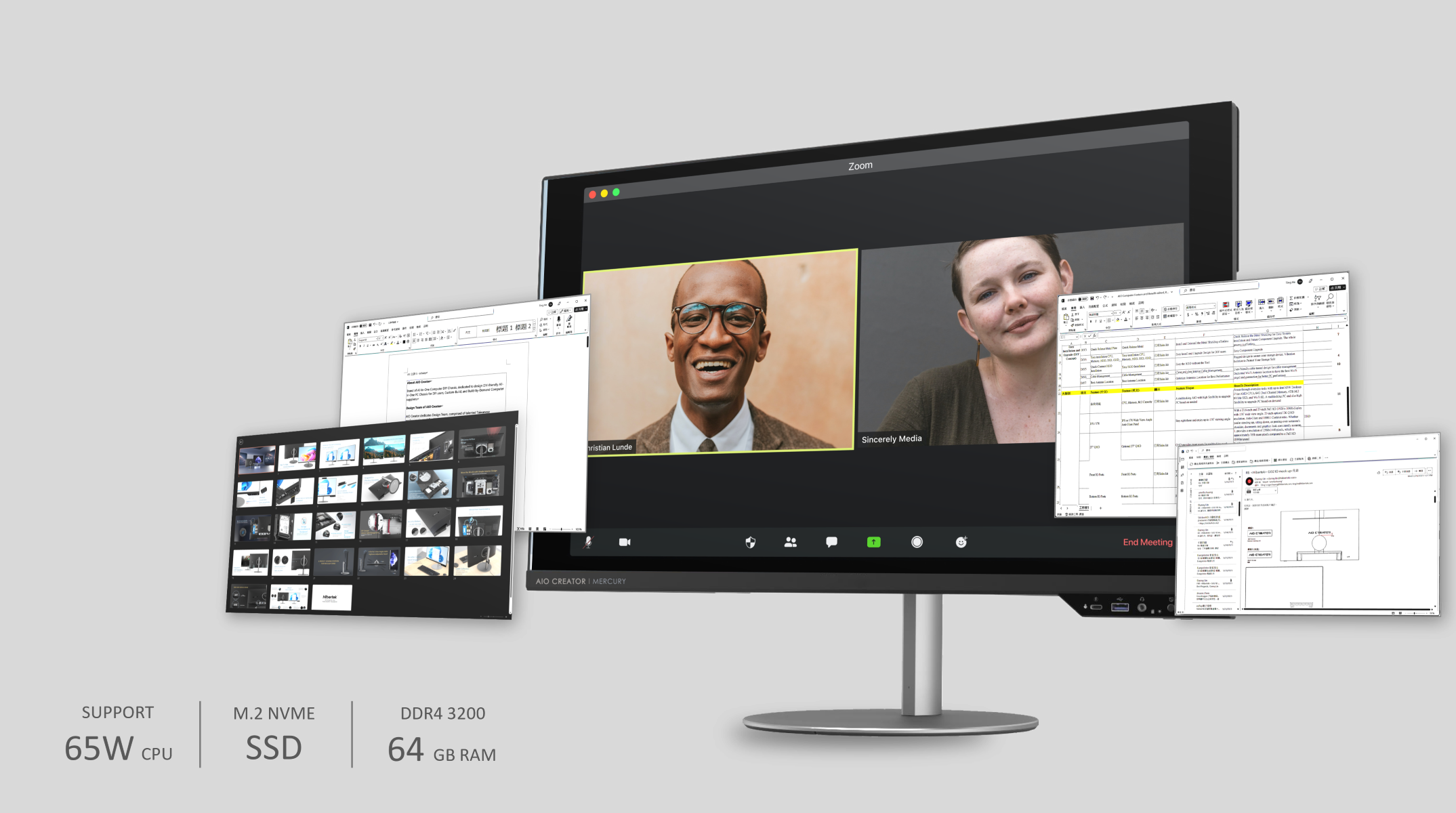

PERFORMANCE
Empower Your Creativity for Multitasking Works
Support Desktop CPU Up to 65W
Up to 64GB DDR4 / DDR5 Memory
Up to 4TB M.2 NVMe SSD
2 x 2.5” HDD
Wi-Fi AX 6E & Bluetooth 5.2

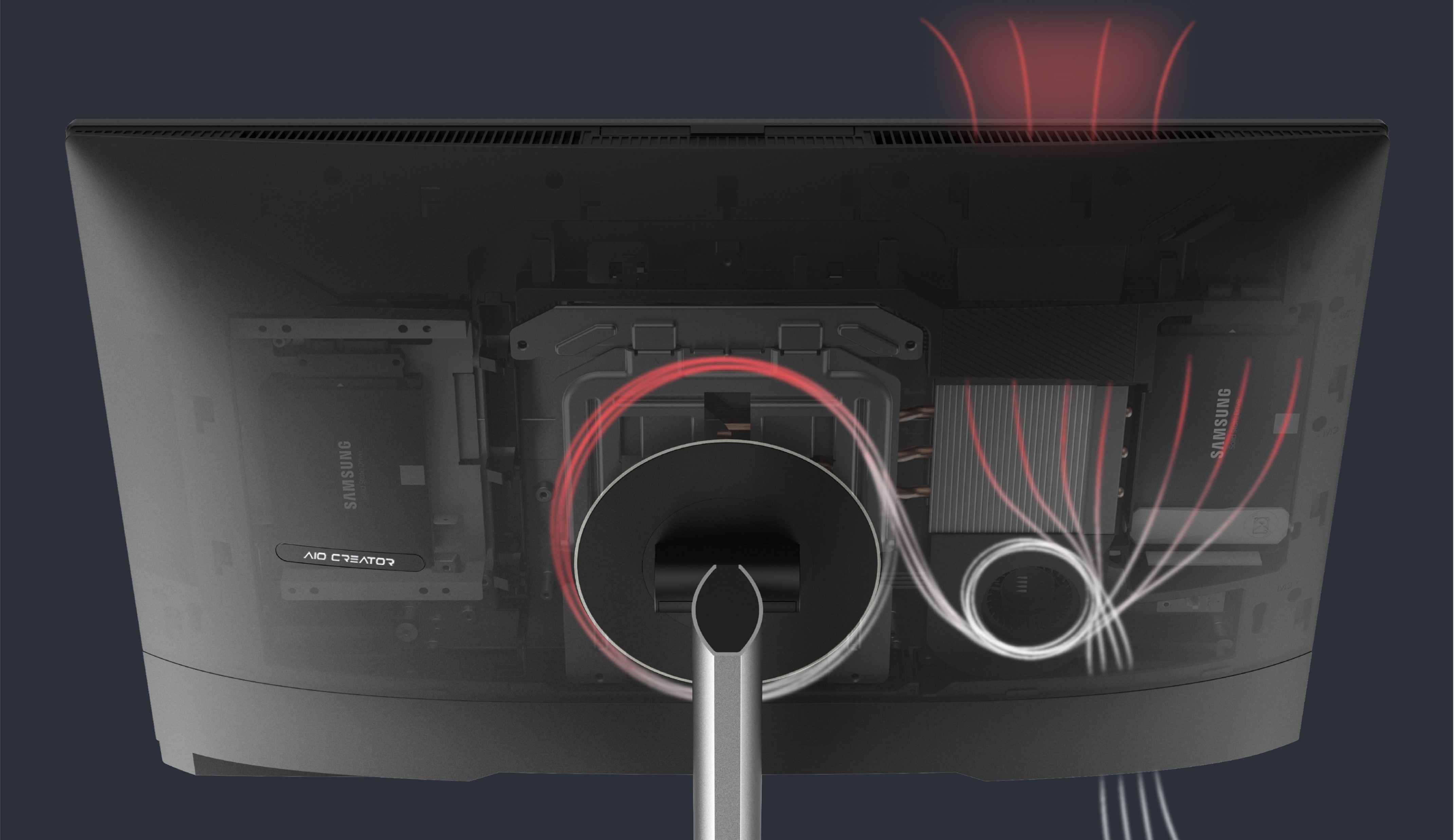

Efficiency Airflow Design

Airflow design for 65W desktop CPU solution

Beautiful Thermal Hole Design

Stylish and Elegant Top View

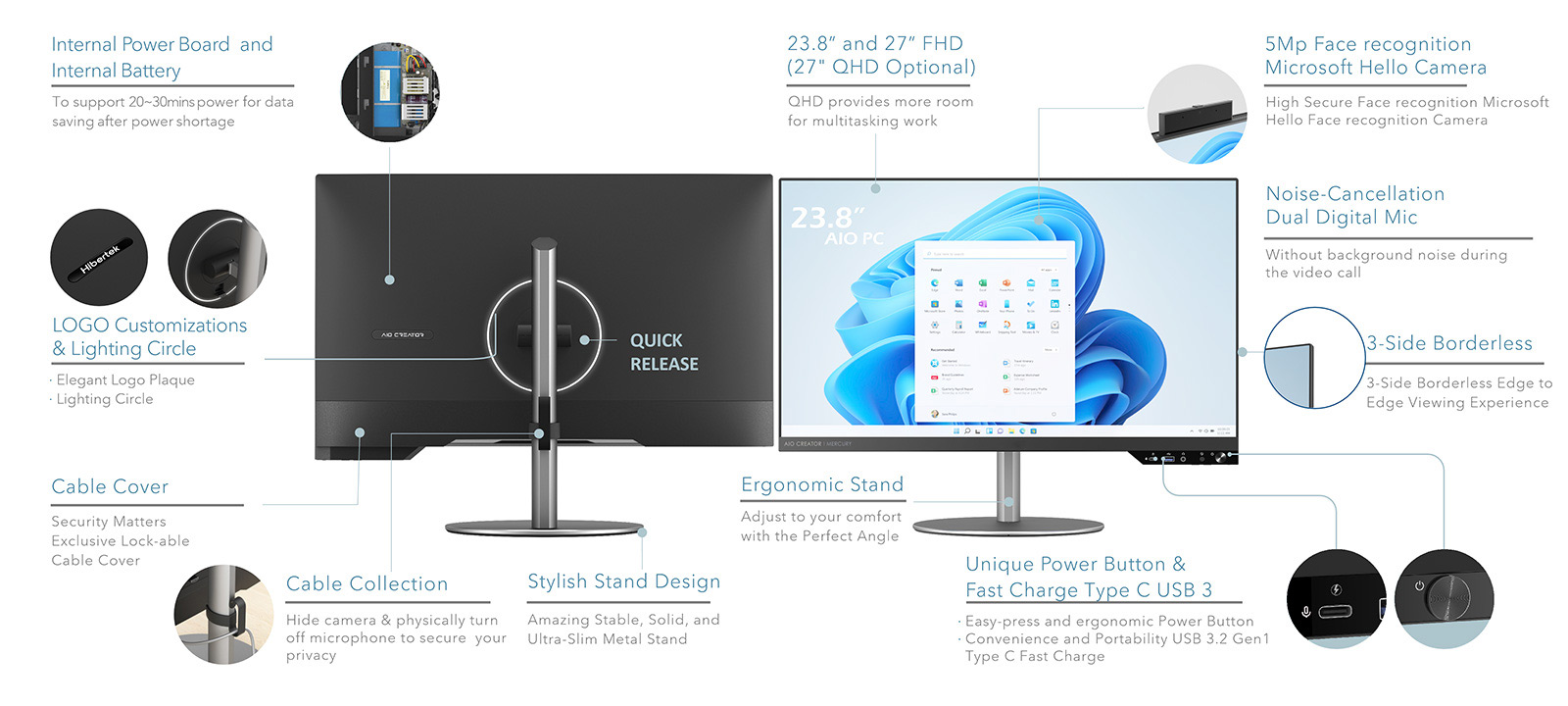

UNIQUE FEATURES

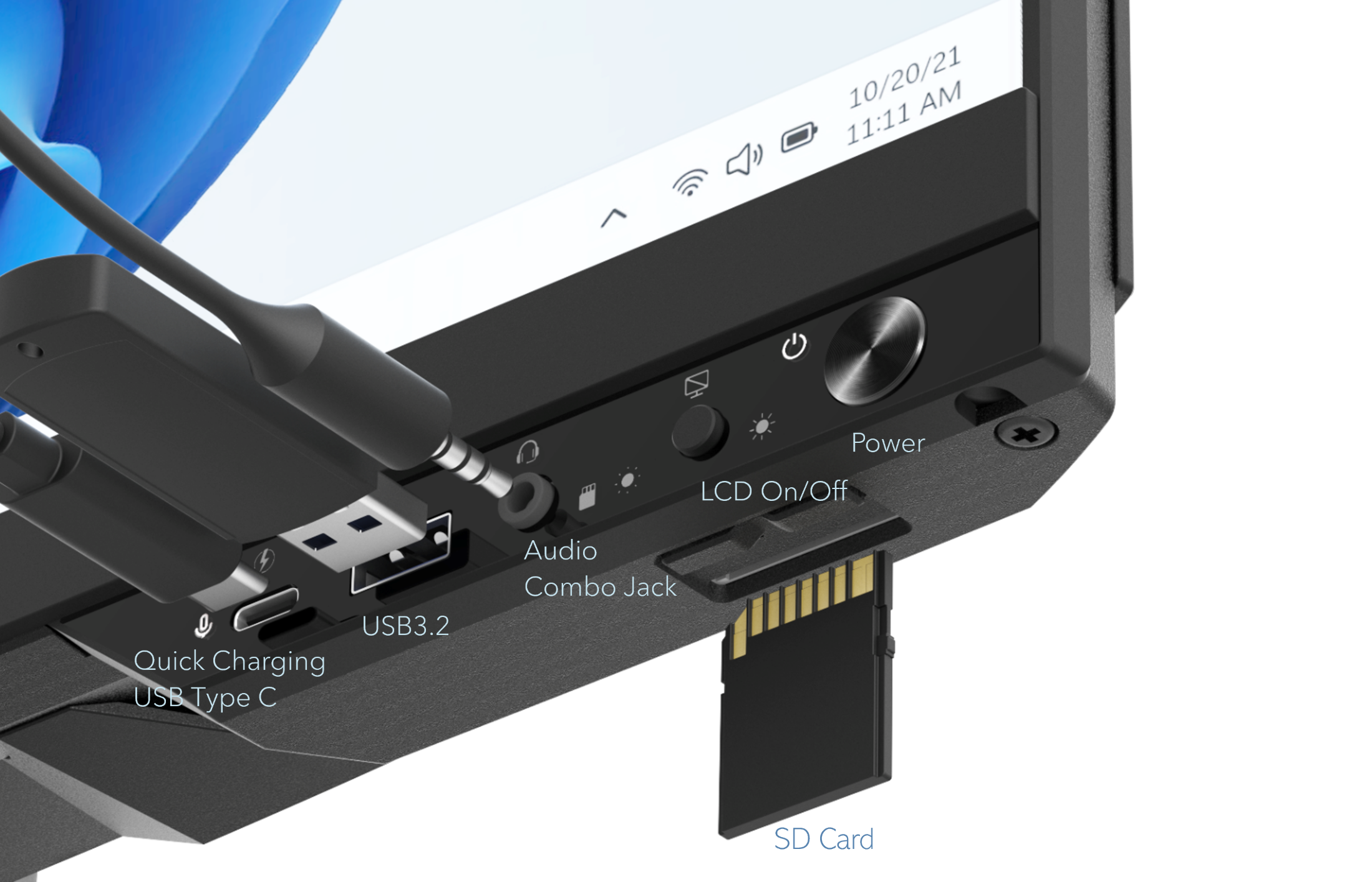

Easy Access Front I/O Ports


Front I/O Ports for easy plug in devices to satisfy daily use needed

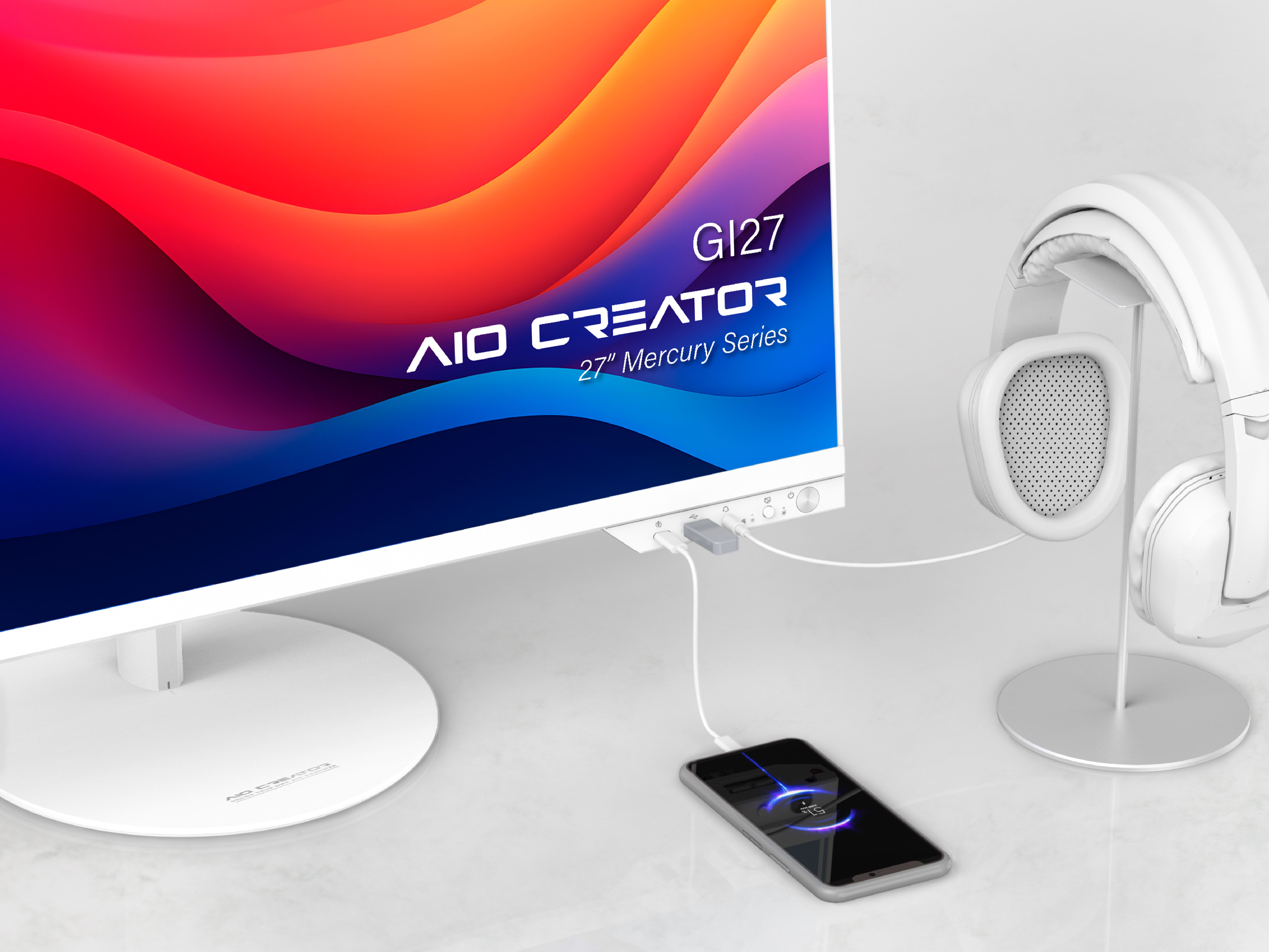

Quick Charge USB TypeC


Convenient Accessing USB3.2 TypeC with Fast Charging
Noise Cancellation


Filter Background Noise when making video call

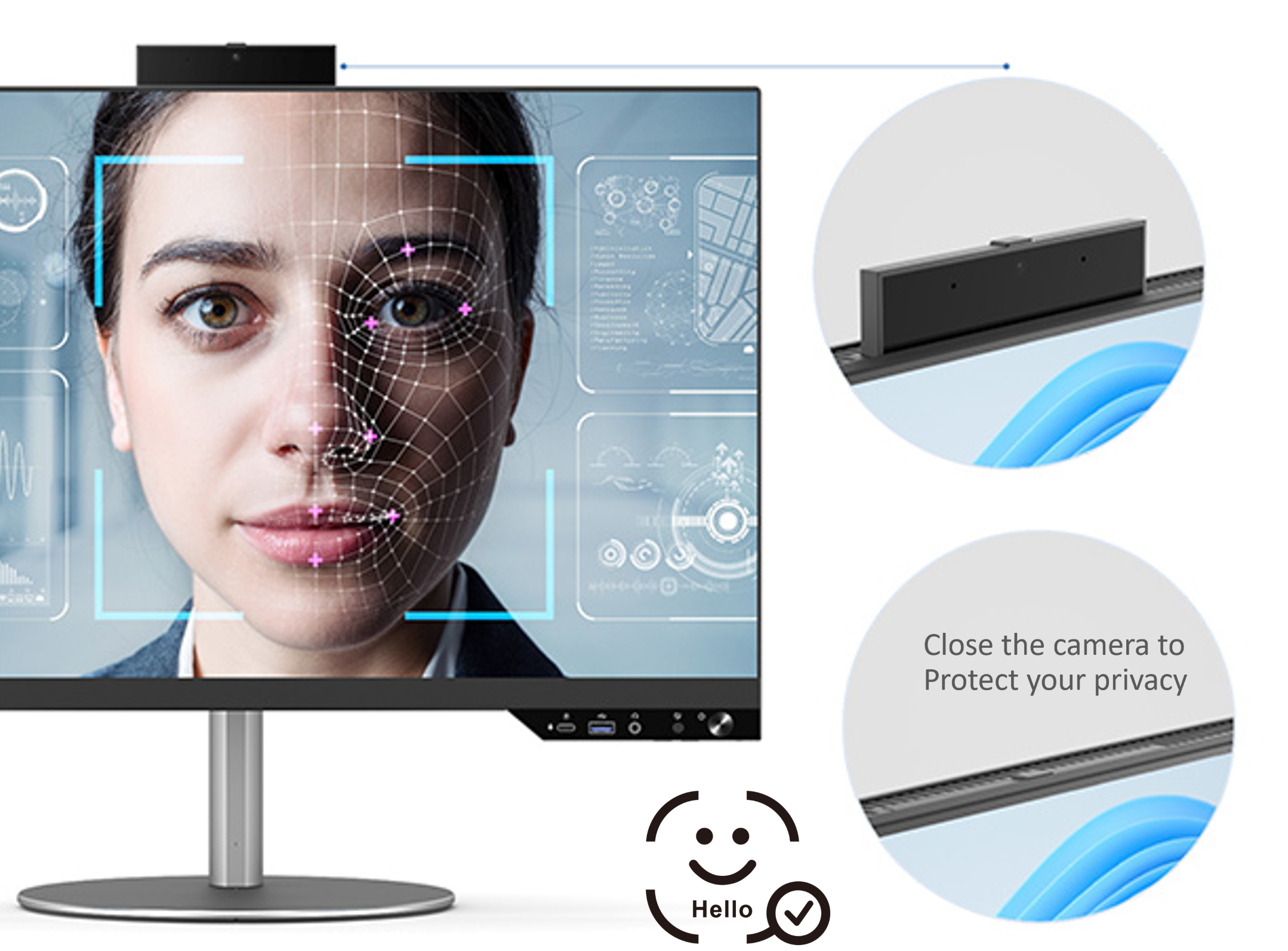

Pop-up Camera

Windows Hello Face Recognition Camera

Protect your personal privacy

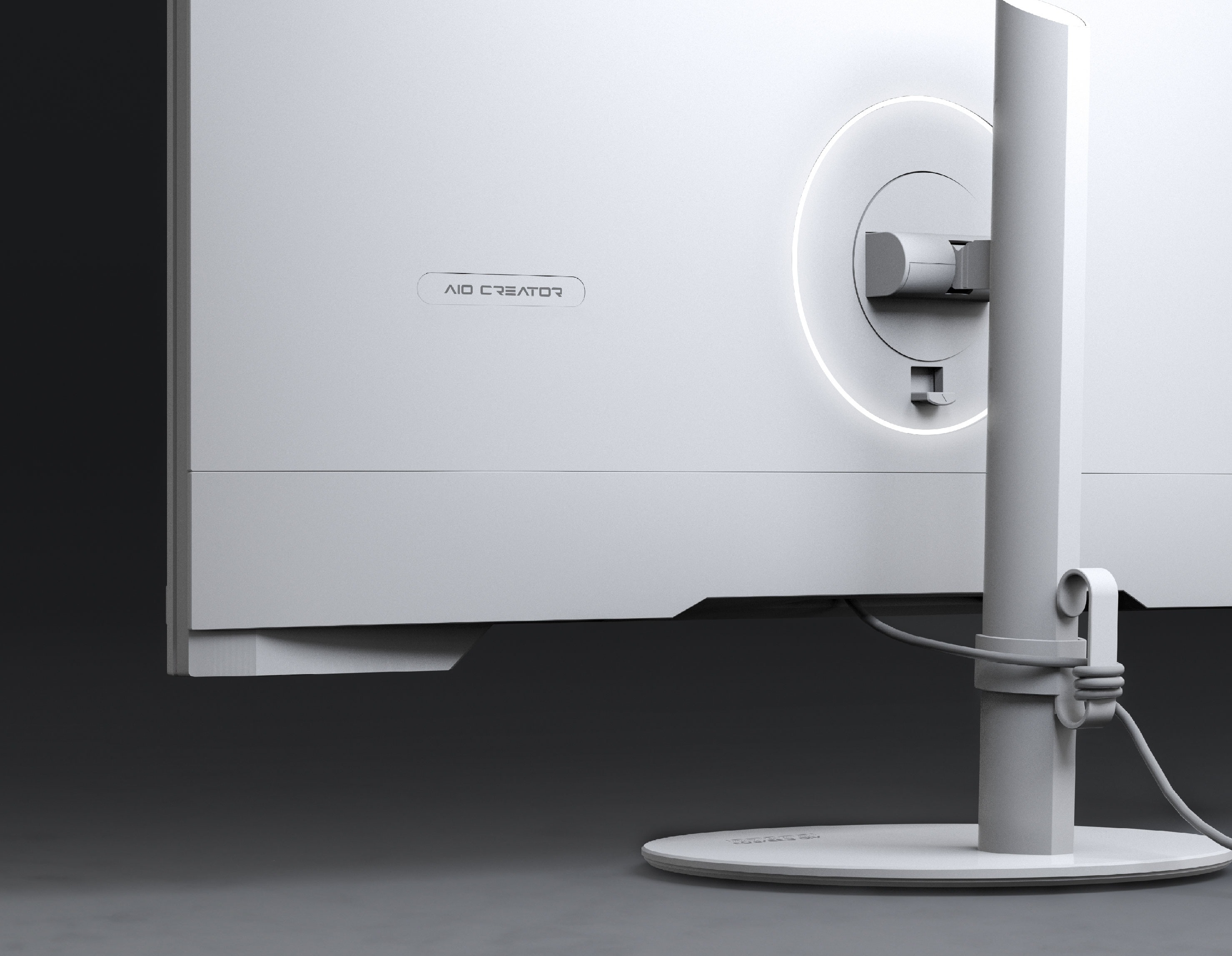

Cable Collection

Versatile Comfort Stand Design Cable management makes your working environment simple and tidy

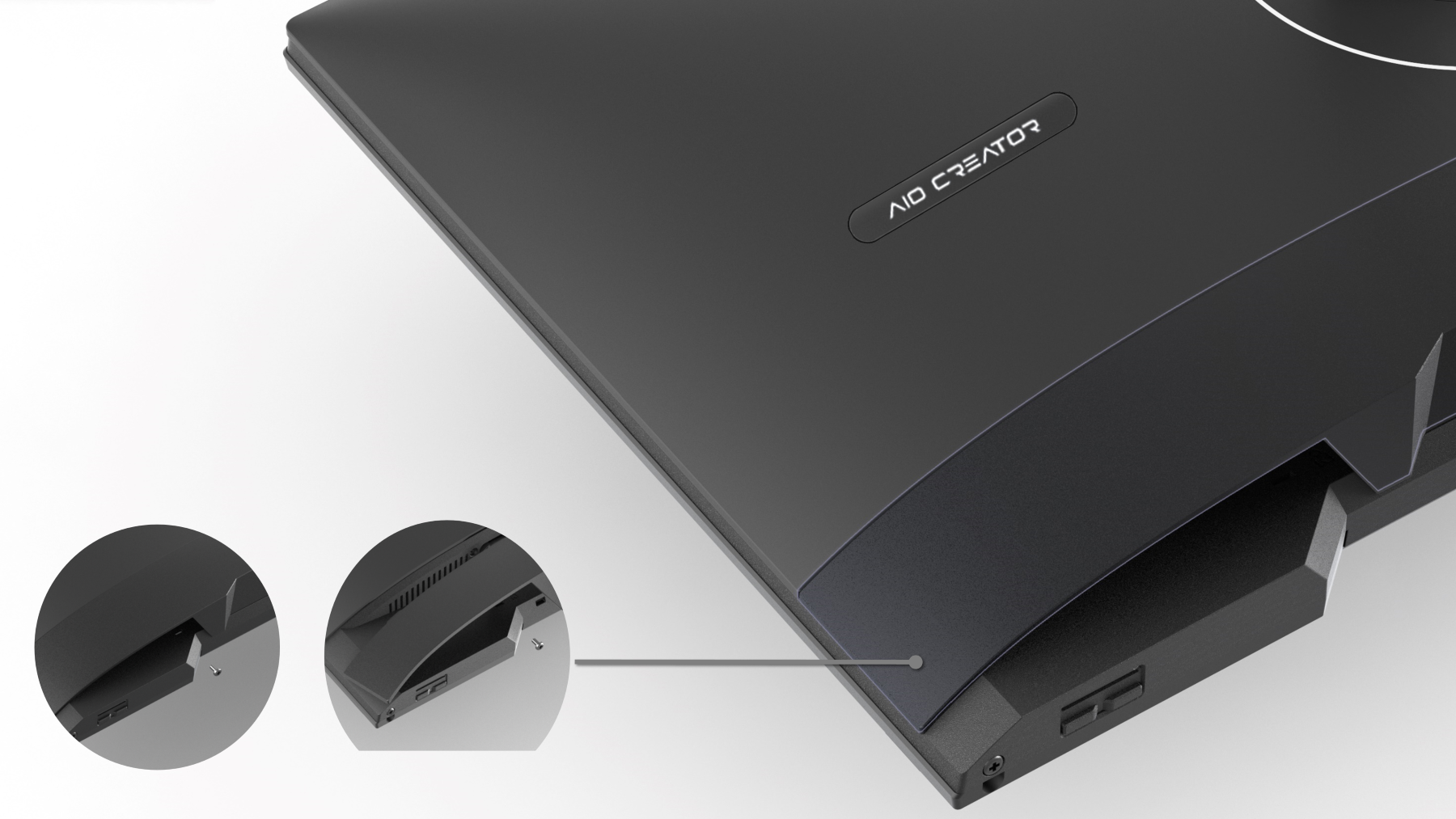

Lock-able Cable Cover

For Office, Business and Government for devices security

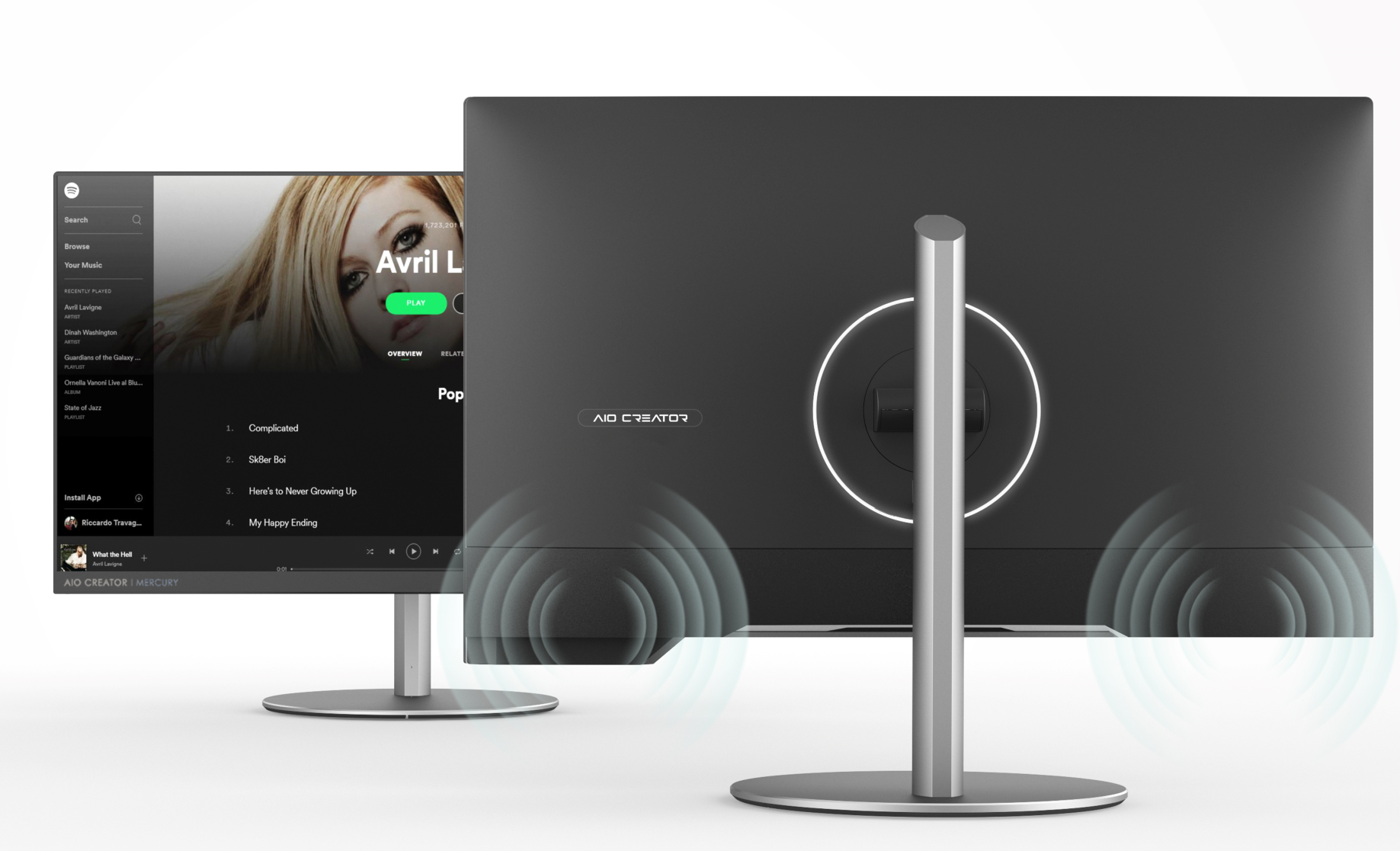

Integrated 2 x 3W Speakers


High-Quality Stereo Sparkers

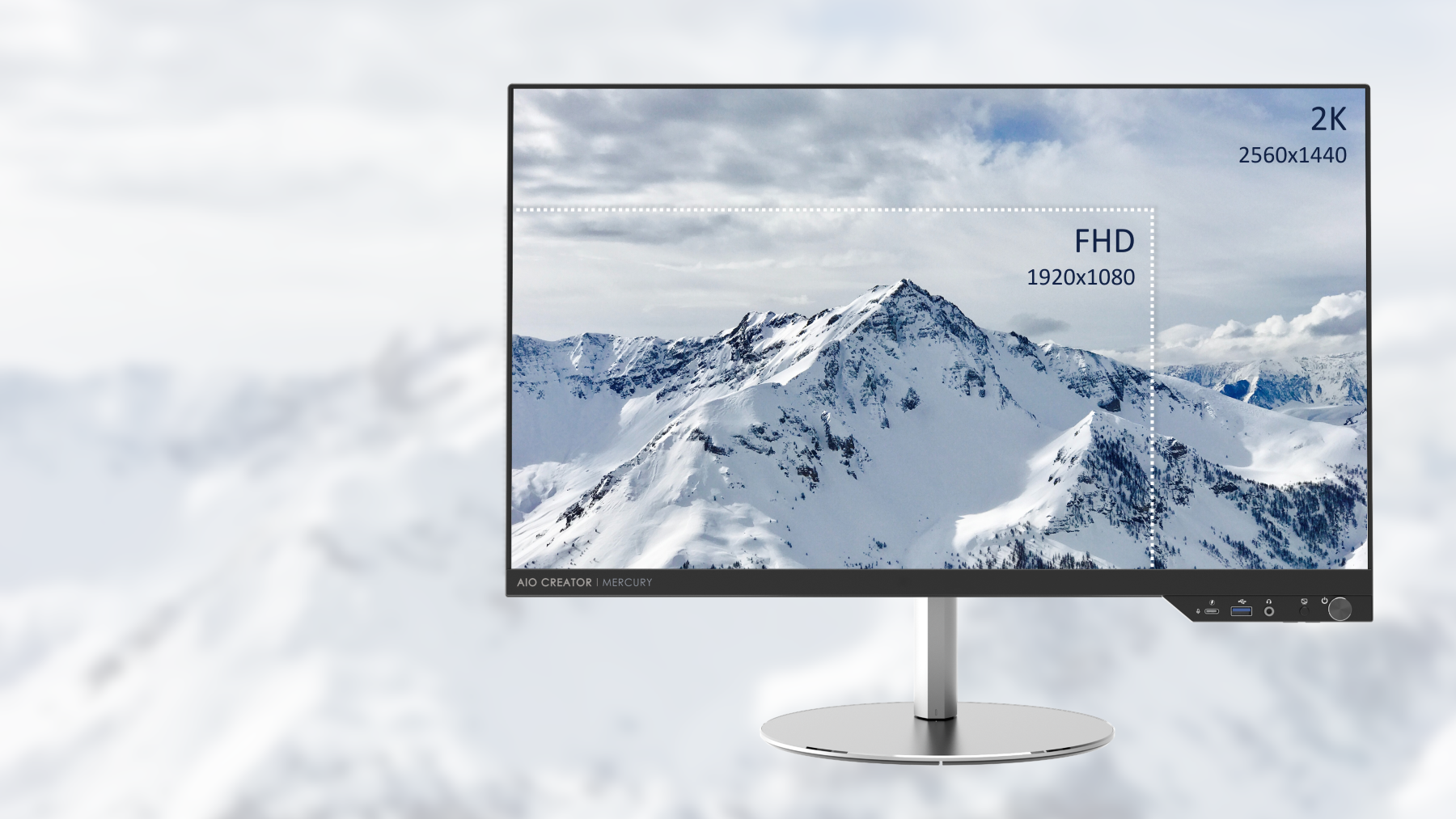

Incredible QHD for 27”

IPS Panel for 23.8” / 27” : See From Any Angle

Sit almost anywhere and have a full color experience
ASSEMBLY PROCESS
STEP 1

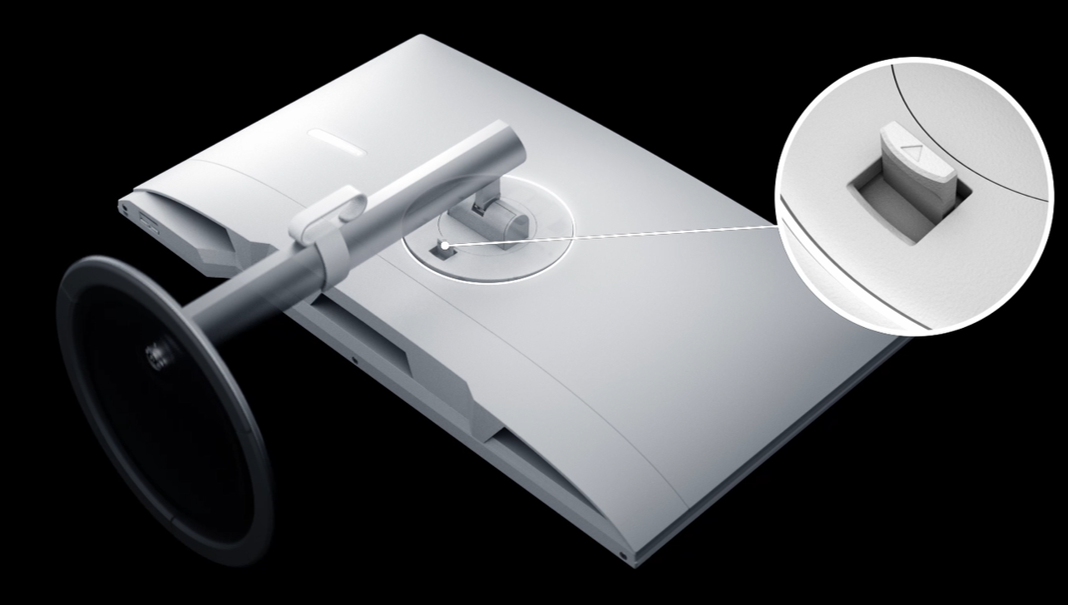

  1. Take out the Stand by Quick Release
  2. Press and Push Button, Slide up the Chassis
  3. Take Out the Metal Shielding
STEP 2

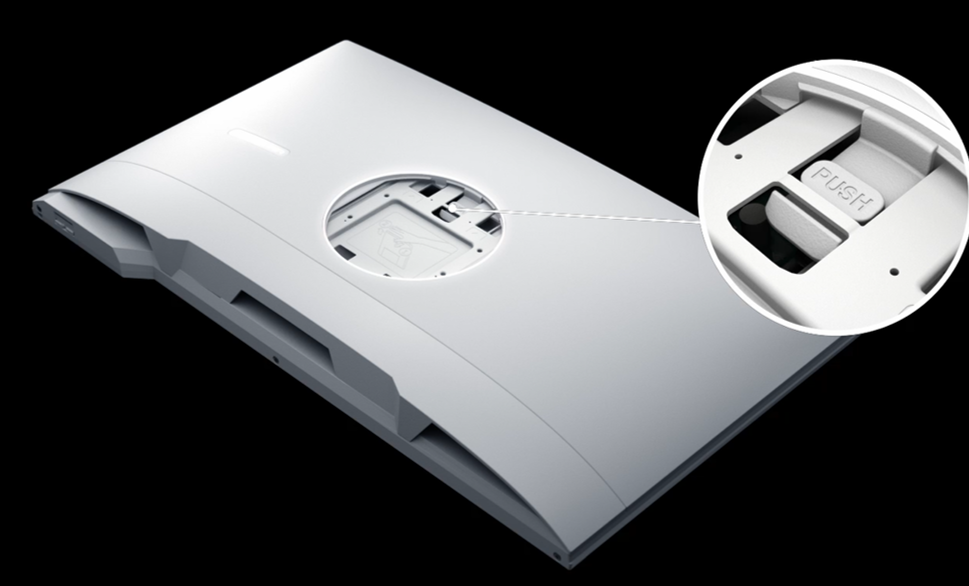

Press and Push Button Slide up the Chassis

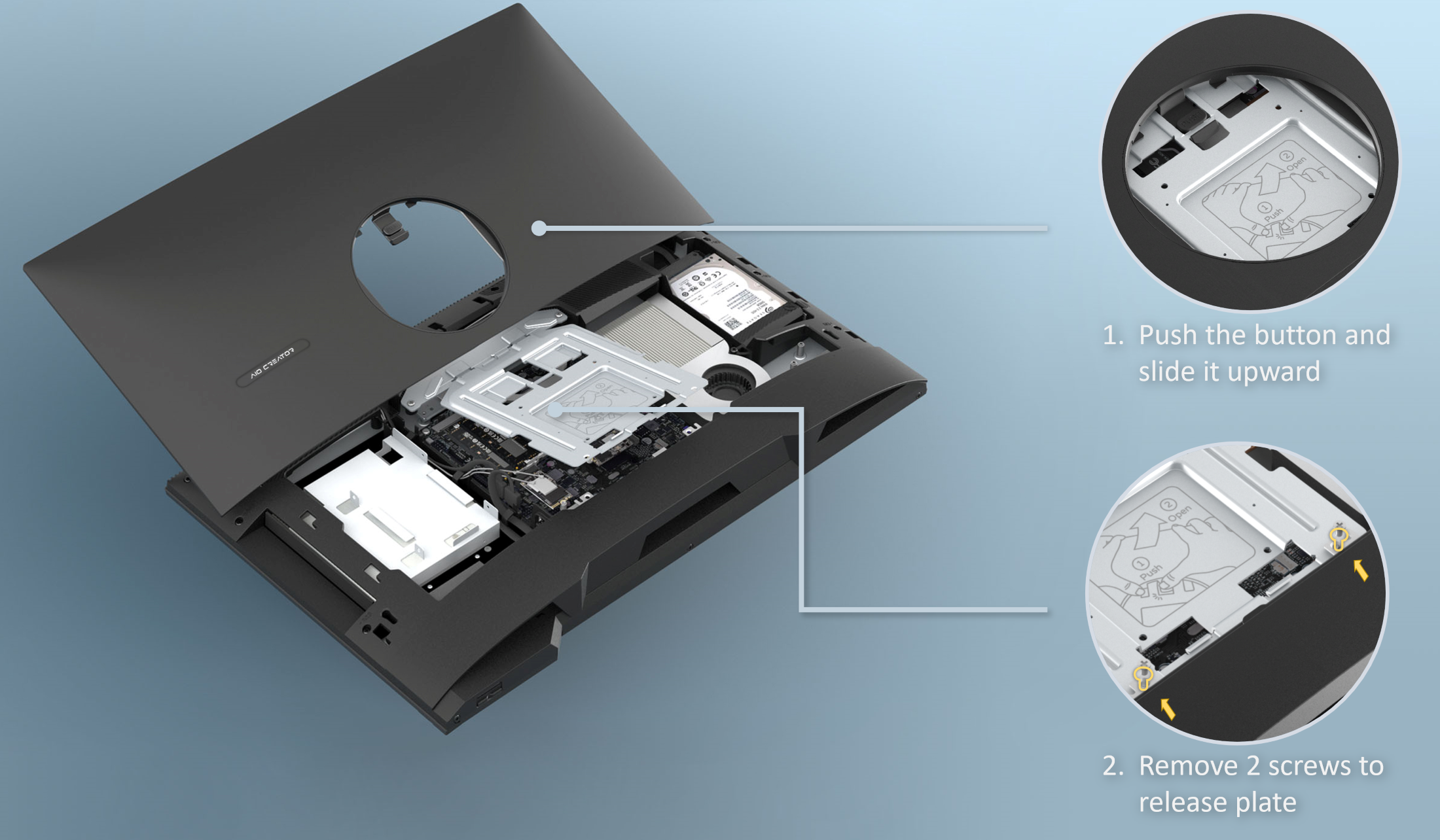

STEP 3
Take Out the Metal Shielding
1. Push the button amd slide it upward
2. Remove 2 screws to release plate
STEP 4

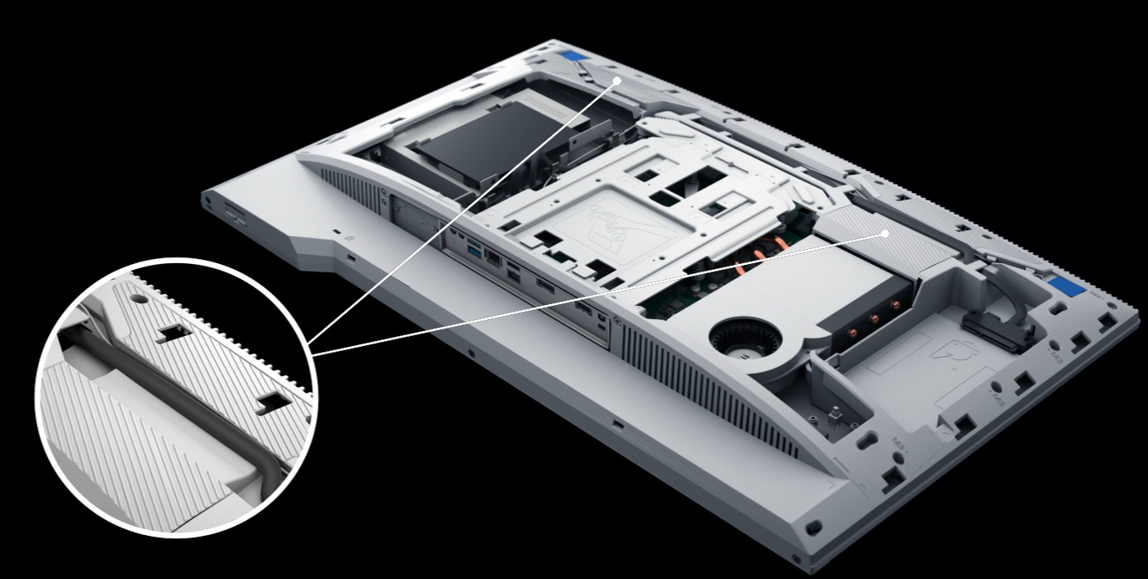

Install the CPU, Memory, M.2 NVMe SSD, and 2.5” HDD :

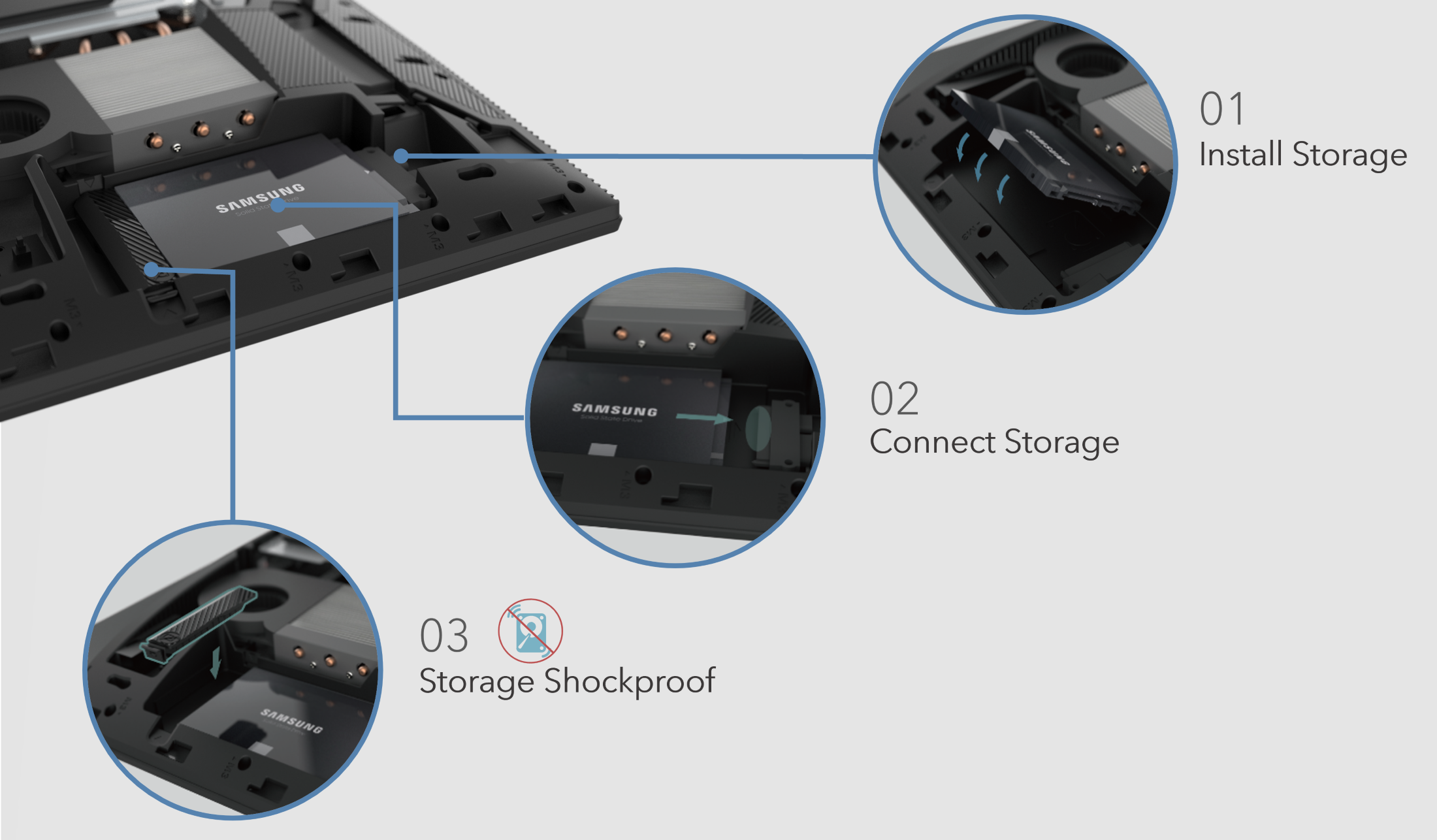

  1. Install Storage:
    Place 2.5” SATA Hard Disk Drive or Solid-State Disk device into slot.
  2. Connect Storage:
    Push forward to connect SATA connector
STEP 5

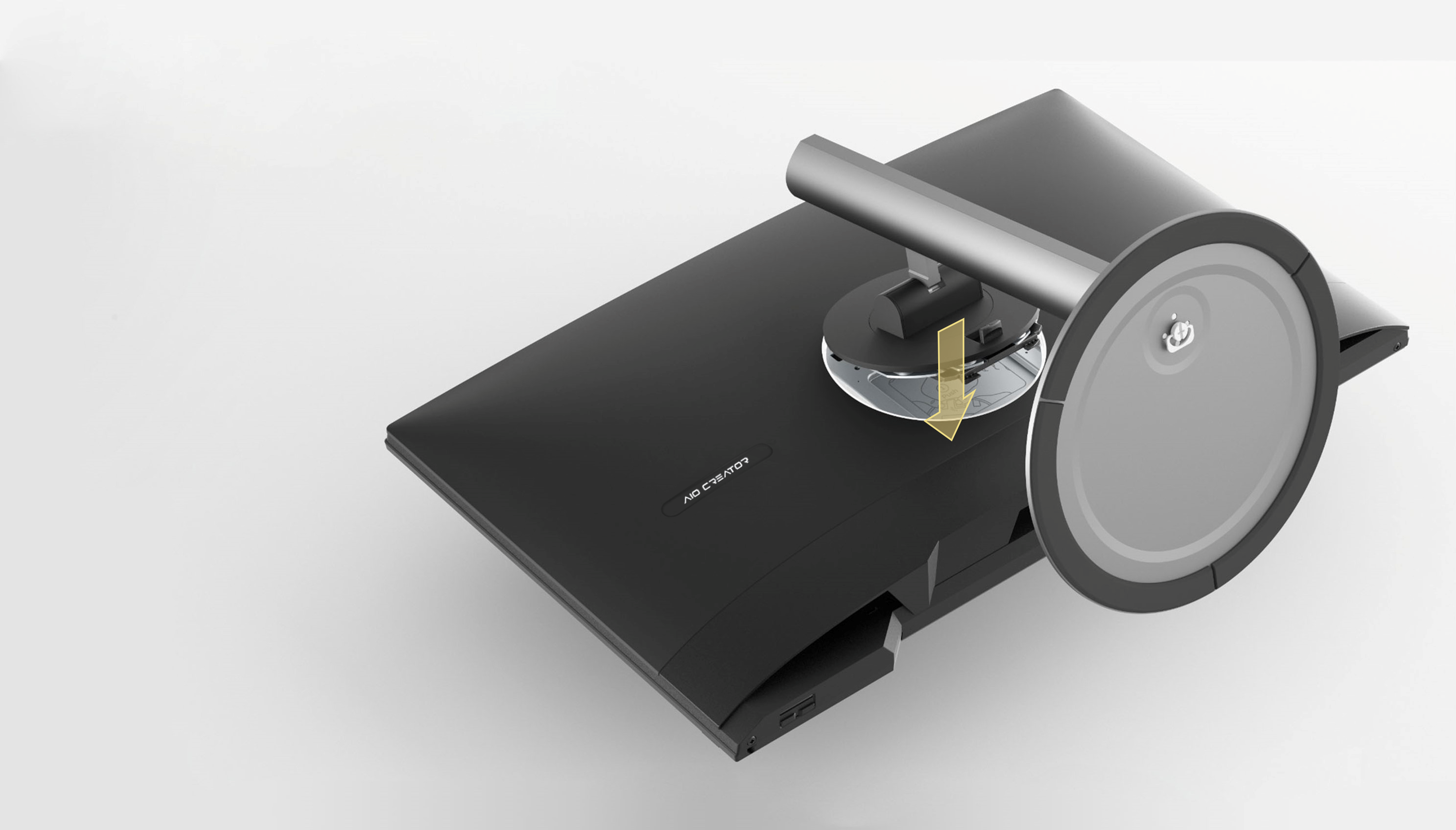

Install the Stand without Tools
FINISH!


CPU/Memory Support

Drivers

ASUS Motherboard Driver
Wireless

BIOS

FAQ

  • Work with our partners to do local Youtube and Forum Marketing
  • High-Resolution Product Pictures
  • Product Introduction Sales Kit
  • Video
  1. Bundle famous ASUS motherboard
  2. Tool-less open chassis
  3. Tool-less HDD installation and vibration-proof clip
  4. Special cable tunnel and cable cover
  5. Too-less Quick-Release Stand

Manual

User Guide

Mercury

The Essence of Transition of All in One PC

Mercury, represents the essence of transition, which transforms your All in One PC from a PC to a decoration of your working space. A stunning All-in-One (AIO) DIY Chassis designed specifically for the consumer users to deliver a romantic and low-profile luxury feeling. It is a perfect balance of aesthetics and technology, combining luxurious design with remarkable performance with featuring a stylish back chassis and stand.

With two AIO screen sizes from Mercury 24 (23.8”) to Mercury 27 (27“), you can select the perfect size for your needs. Mercury features a gleaming white lighting circle and a beautiful nameplate on the back chassis both compose an outstanding appearance of Mercury. Mercury also takes in premium aluminum-alloy solid round stand with a stable and sturdy foundation.

Mercury All-in-One PC Chassis is perfect for Computer DIY and Custom-Build PC users who want to assemble the computer based on their requirements. With Mercury, users can easily choose the CPU, Memory, SSD, and HDD, and upgrade these components in the future.

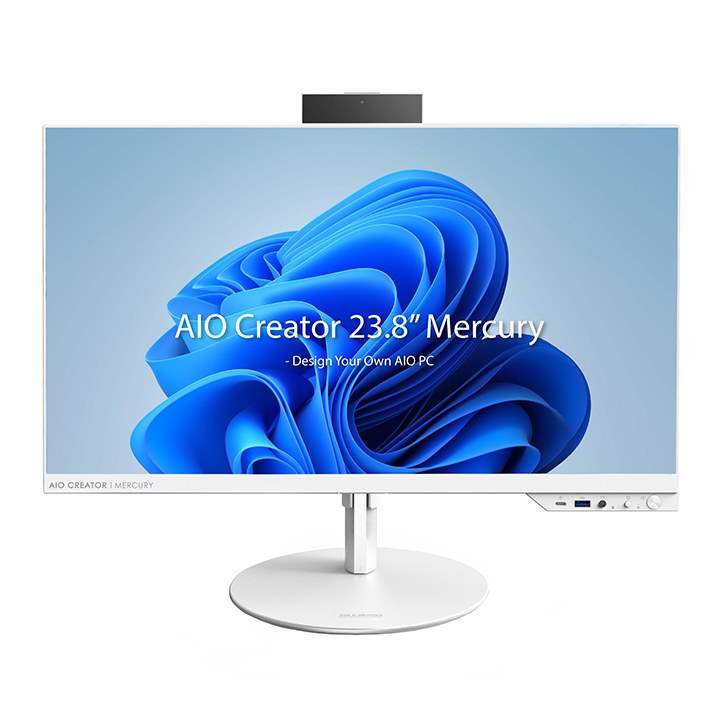

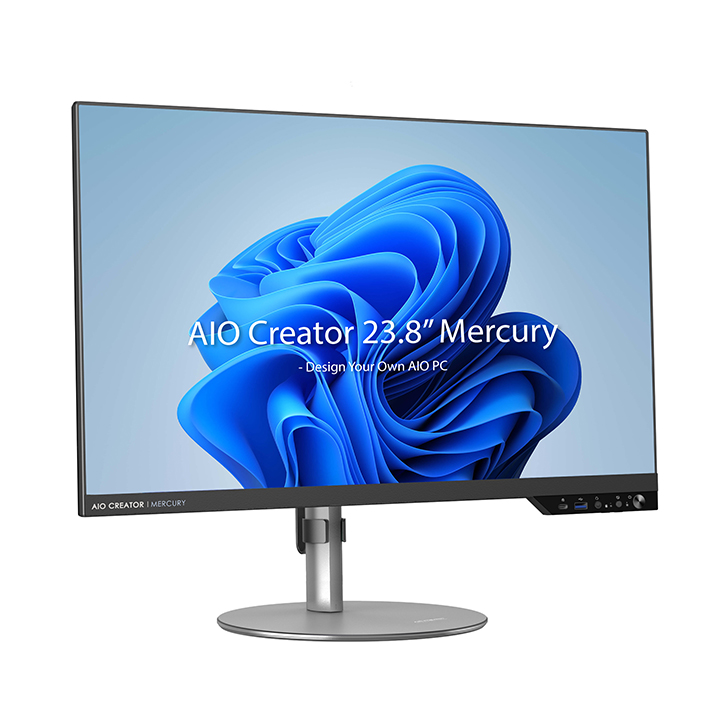

Mercury 24 (23.8“)

Highlight

 Front I/O Ports with USB Type C Quick Charging
Face Recognition Windows Hello Camera
Dual Digital Microphones for Noise-Cancellation
Tool-Less Chassis Design for Saving Assembly Cost and Easy Upgrade

Display

 23.8 inch, FHD (1920 x 1080) 16:9, IPS level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:1000 contrast ratio, 3-Border Bezel-free, Zero Bright dot

Motherboard

 Bundle with ASUS H610T Motherboard
Support Standard 170 x 170 mm Thin Mini ITX Motherboard

Processor

 Intel Socket LGA1700 for 13th / 12th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors Up to 65W

Memory

 Support SO-DIMM, Max. 64GB. DDR4 or DDR5
*Depend on motherboard specification

Storage

 1 x M.2 M key 2280 SSD (Supports PCIe & SATA mode)
2 x 2.5” Tool-Less Installation of Hard Disk Drive / Solid-State Drive Space

Camera

 Pop-Up Camera Housing
5Mp 2592 x 1944 Camera with Dual Microphone

Wireless

 M.2 Wi-Fi 6 / 6E (802.11ax)
Bluetooth 5.2

Logo

 Logo Plate
Lighting Circle with White Luminance

Front IO

 1 x USB3.2 Gen1 Type A
1 x USB3.2 Gen1 Type C with 7.5W Quick Charge Support
1 x 3.5mm Audio Combo Jack
1 x SD Card Reader (SD / SDHC / SDXC / MMC)

Back IO

 2 x USB 3.2 Gen 2 ports
2 x USB 2.0 ports
1 x DisplayPort out
1 x HDMI-Out
1 x Gigabit Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)

Speaker

 2 x Speakers
3W, 8Ohm

Security

 Kensington Lock
Cable Cover with Screws

Power

 120W External Power Adaptor
Power Cord

Stand

 High Adjustable Stand
Tool-Less Quick Release Design
Elevation: 130 mm
Tilt: -15°~25°
Swivel: -30°~30°
Rotation: -90°~90°


Mercury 27 (27”)

Highlight

 Front I/O Ports with USB Type C Quick Charging
Face Recognition Windows Hello Camera
Dual Digital Microphones for Noise-Cancellation
Tool-Less Chassis Design for Saving Assembly Cost and Easy Upgrade

Display

 27 inch, FHD (1920 x 1080) 16:9, IPS level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:1000 contrast ratio, 3-Border Bezel-free, Zero Bright dot
Optional QHD (2560 x 1440) 16:9, IPS level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:1000 contrast ratio, 3-Border Bezel-free, Zero Bright dot

Motherboard

 Bundle with ASUS H610T Motherboard
Support Standard 170 x 170 mm Thin Mini ITX Motherboard

Processor

 Intel Socket LGA1700 for 13th / 12th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors Up to 65W

Memory

 Support SO-DIMM, Max. 64GB. DDR4 or DDR5
*Depend on motherboard specification

Storage

 1 x M.2 M key 2280 SSD (Supports PCIe & SATA mode)
2 x 2.5“ Tool-Less Installation of Hard Disk Drive / Solid-State Drive Space

Camera

 Pop-Up Camera Housing
5Mp 2592 x 1944 Camera with Dual Microphone

Wireless

 M.2 Wi-Fi 6 / 6E (802.11ax)
Bluetooth 5.2

Logo

 Logo Plate
Lighting Circle with White Luminance

Front IO

 1 x USB3.2 Gen1 Type A
1 x USB3.2 Gen1 Type C with 7.5W Quick Charge Support
1 x 3.5mm Audio Combo Jack
1 x SD Card Reader (SD / SDHC / SDXC / MMC)

Back IO

 2 x USB 3.2 Gen 2 ports
2 x USB 2.0 ports
1 x DisplayPort out
1 x HDMI-Out
1 x Gigabit Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)

Speaker

 2 x Speakers
3W, 8Ohm

Security

 Kensington Lock
Cable Cover with Screws

Power

 120W External Power Adaptor
Power Cord

 Stand

 High Adjustable Stand
Tool-Less Quick Release Design
Elevation: 130 mm
Tilt: -15°~25°
Swivel: -30°~30°
Rotation: -90°~90°
